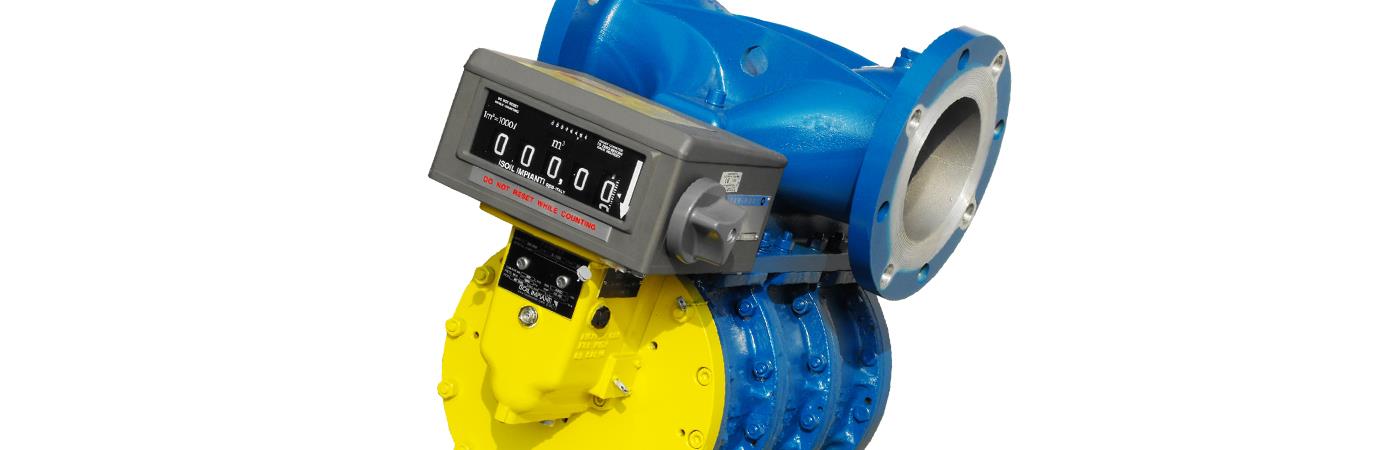

The ISOIL Positive Displacement Meter (PD meter) is a system with freely-moving blades used to measure petroleum products such as fuels, bio-fuels and refined liquid hydrocarbons. Its simple design with only two pairs of blades and one moving rotor makes it exceptionally robust and allows the user to make significant savings on maintenance costs.
Manufactured from Aluminium, Carbon Steel and Stainless Steel, they are a robust design with high accuracy readings, ±0.15% Accuracy and ±0.02% Repeatability.
Available meters are as follows:
Meter Model
|
Line Size
|
Max. Flow Rate
|
Body Material
|
SBM 32
|
1.5" |
350lpm |
Carbon Steel
|
SBM 75
|
2" |
500lpm
|
Aluminium
|
SBM 75MK2
|
2" |
500lpm |
Aluminium
|
SBM 150
|
3"
|
1,300lpm |
Aluminium |
| BM 200 |
3"
|
1,300lpm
|
Carbon Steel
|
BM 400
|
4" |
2,400lpm |
Carbon Steel
|
BM 600
|
6" |
3,400lpm |
Carbon Steel
|
BMX 200
|
3"
|
1,300lpm |
Stainless Steel
|
BMX 400
|
4" |
2,400lpm |
Stainless Steel
|
BMX 600
|
6" |
3,400lpm |
Stainless Steel
|
LBM 1000
|
8" |
7,850lpm |
Carbon Steel
|
LBM 3000
|
10"
|
15,700lpm |
Carbon Steel
|
Accessories include some of the following:

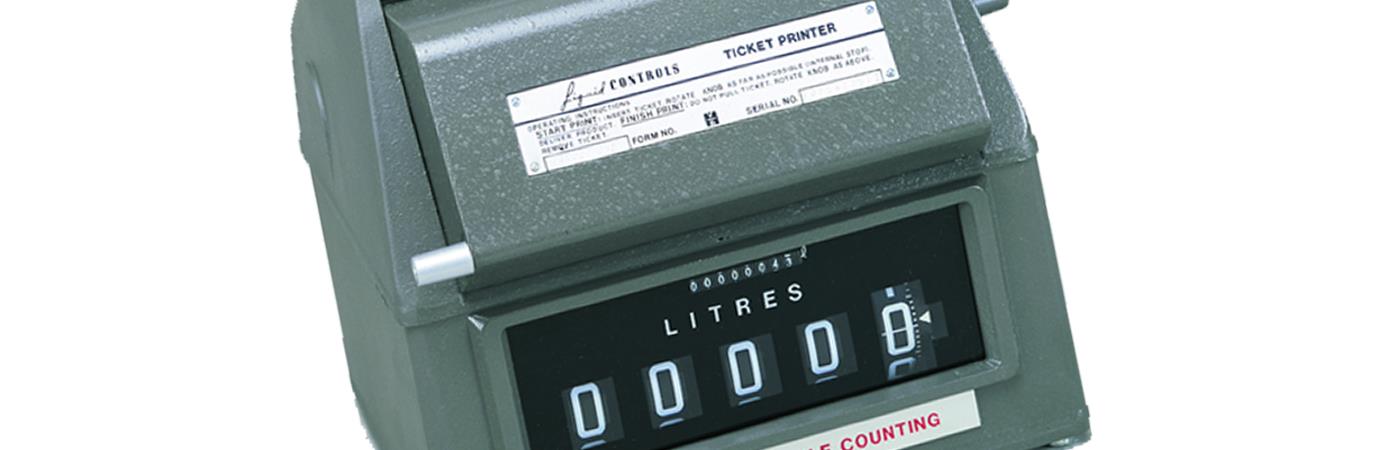

- Veeder Root Mechanical Register
- Mechanical Preset
- 360° Mechanical Counter Device
- Mechanical Ticket Printer
- Pulse Transmitter (ATEX Approved)
- Strainer Air Eliminator

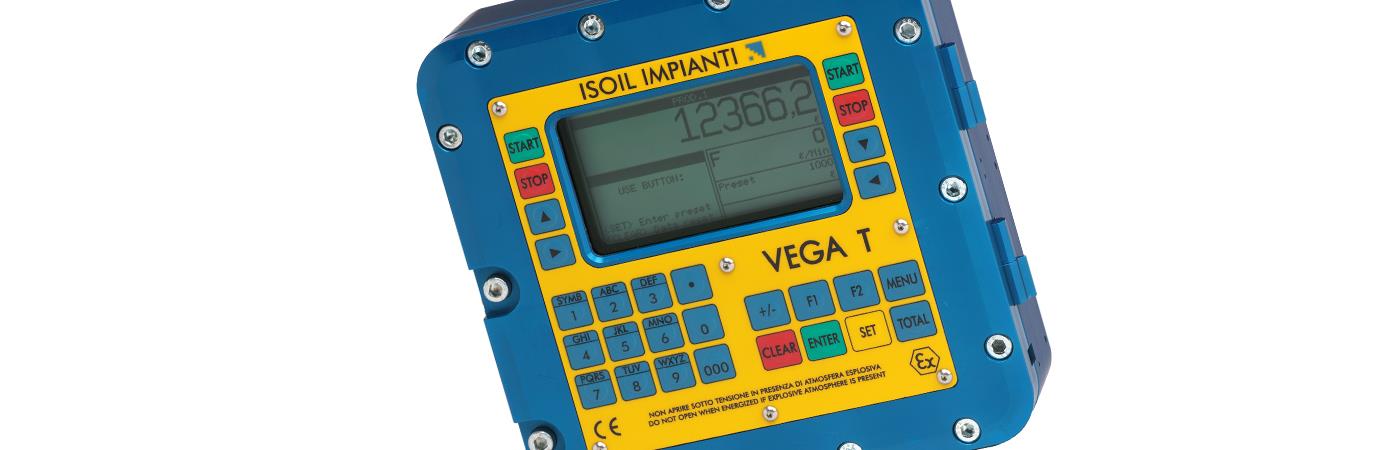

- Electrical Register (Vega T)
- PT100 Pressure Sensor
- Electronic Ticket Printer

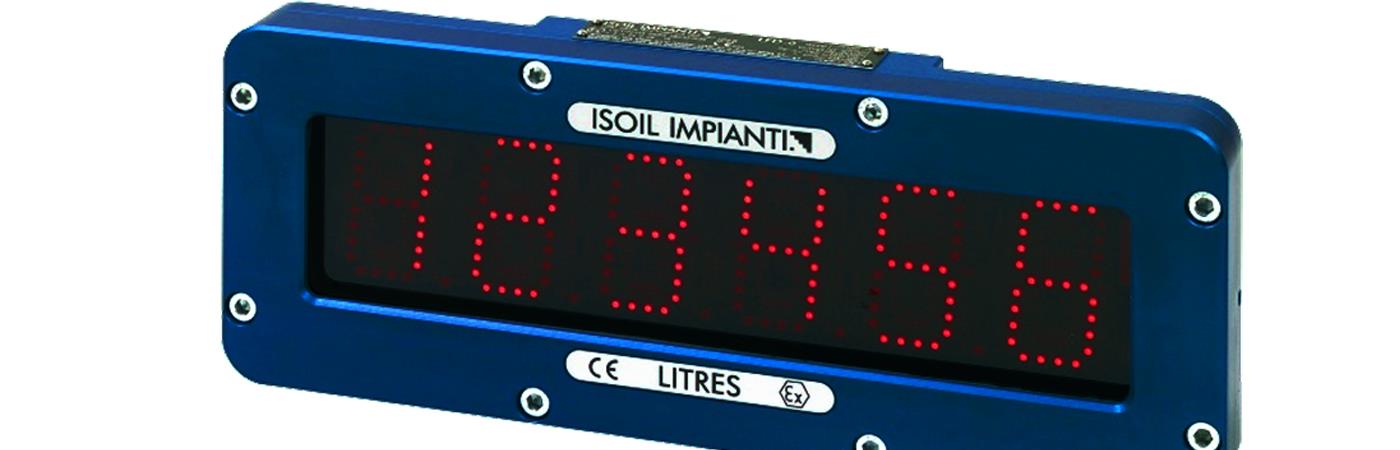

- Large Figure Display (ATEX Approved)
Other meters and accessories are available.
Isoil flow meters can also come tested to Master Meter standards.
