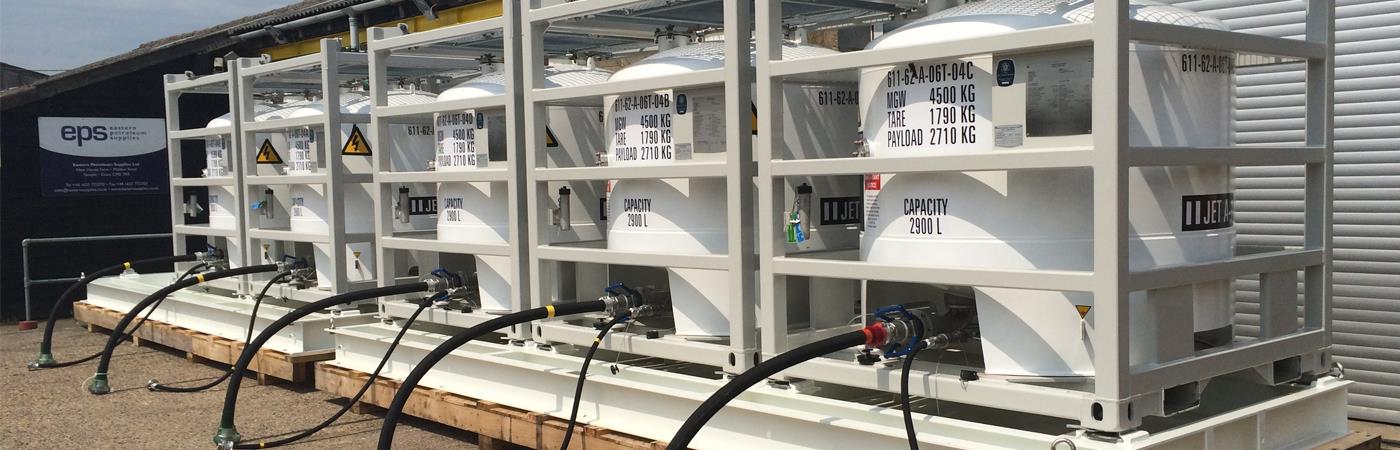

Transportable Tanks (TOTE)


Built under the regulations of ASME VIII Division 1 for the tank and DNV 2.7-1 for the outer frame, these transportable tanks offer a robust design which with their ISO container fittings securely mount onto a purpose built skid frame. Available in both horizontal and vertical tank configurations, the tanks are normally fitted with a 3” bottom inlet/outlet valve with a 2.5” dry disconnect coupling to ensure no spillage, a ¾” low point sampling connection, 500mm manhole, 170mm inspection hatch, 2.5” breather valve with flame arrestor and a 152mm manual level gauge. (Other fittings and layouts can be accommodated on request)

Standard Sizes: 2,900 Litres, 4,000 Litres & 4,800 Litres (other sizes available on request)

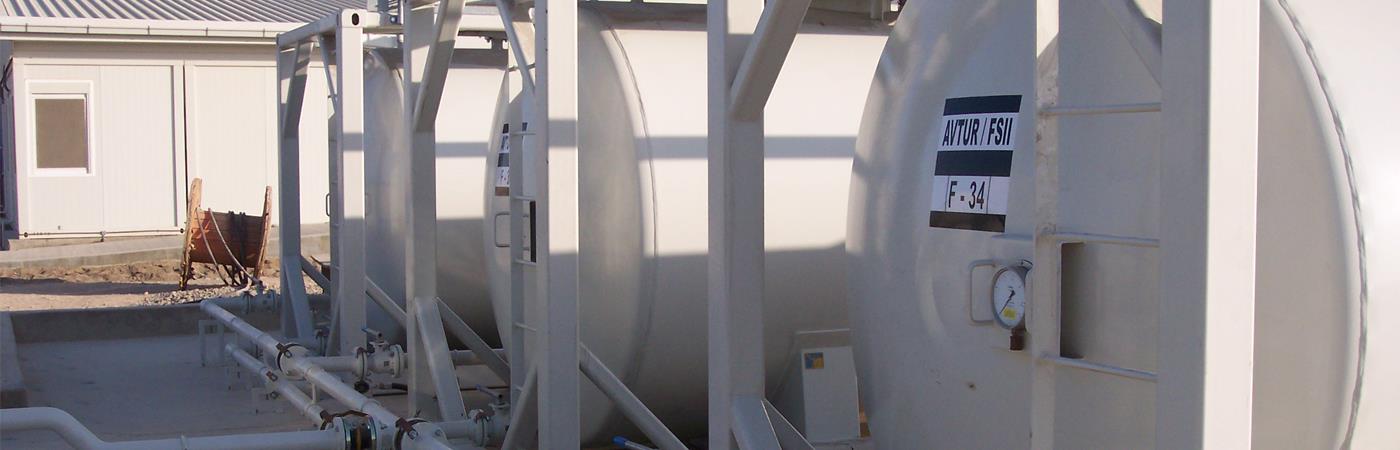

Static Storage Tanks


Constructed to a wide variety of specifications and standards, these static storage tanks are manufactured to order to project specific capacities. The most common specifications are as follows:

ASME VIII Division 1 Boiler and Pressure Vessel Code


We can offer many types of stainless steel pressure vessels for a wide range of offshore and onshore applications. Design Pressures range from 0.5 Bar to 1000 Bar and EPS are able to cope with a wide range of design conditions and specifications.

BS EN 12285-2 Workshop fabricated Steel Tanks


We can provide aviation fuel tanks and ancillary items for above ground or underground use in horizontal, vertical or rectangular configurations. These are all made to the highest quality standards as demanded by the Ministry of Defence, Civil Aviation Authorities and other regulatory bodies.

All tanks can be designed for storage of all types of flammable and non flammable liquids. Any ancillary items, such as gauges, valves, floating suction units and air vent equipment can be supplied.

Internal linings, to maintain product cleanliness, can be applied where applicable.
